Shanghai Dongfeng Diesel Engine SC11CB220G2B1 C6121ZG50 cat 3306 C6121 Shanghai Diesel Engine

Shanghai Dongfeng Diesel Engine SC11CB220G2B1 C6121ZG50 cat 3306 C6121 Shanghai Diesel Engine

SC11CB220G2B1
C6121ZG50
CAT 3306
C6121 Shanghai Diesel Engine

Product Description:

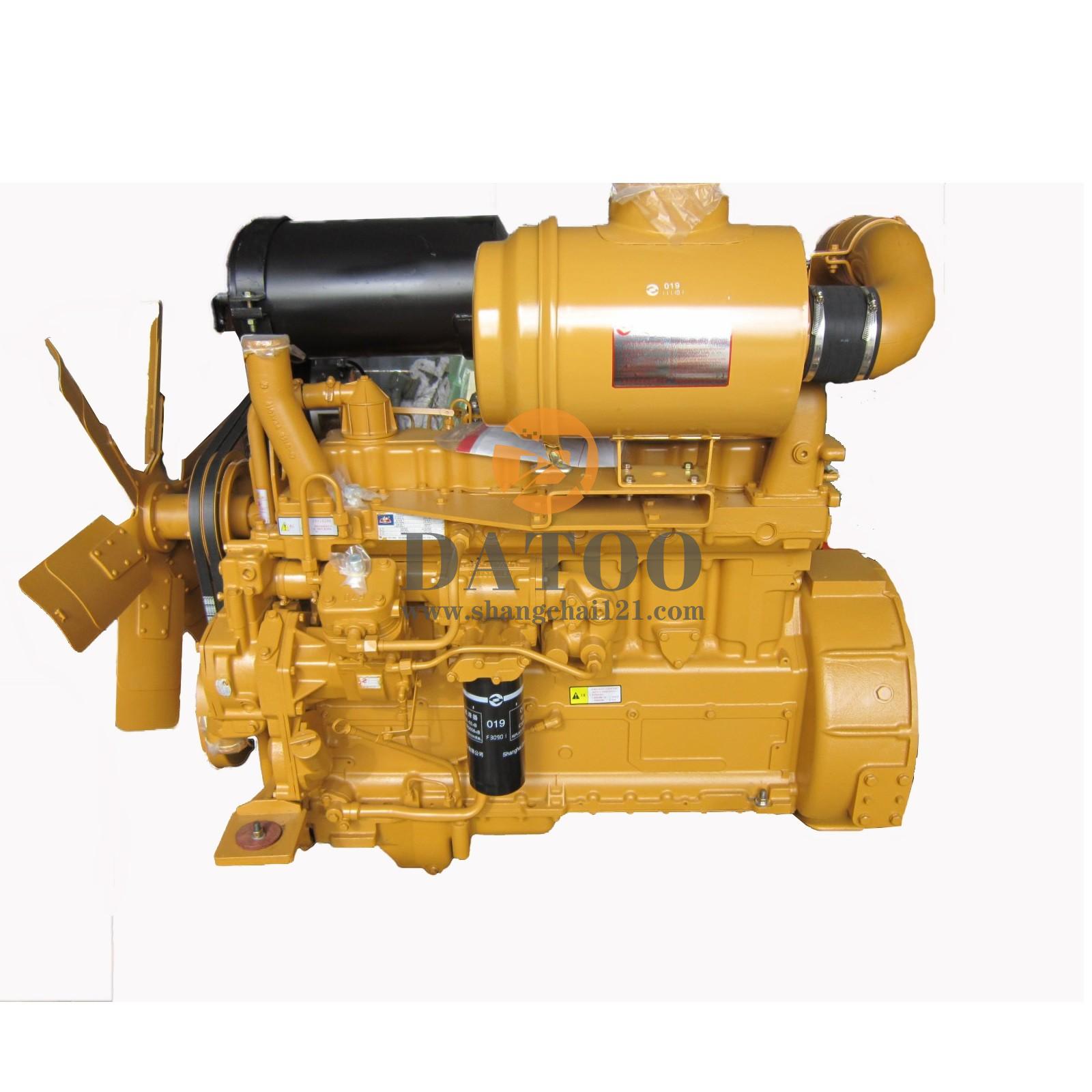

Shanghai diesel engine CAT3306 C6121 SC11CB220G2B1

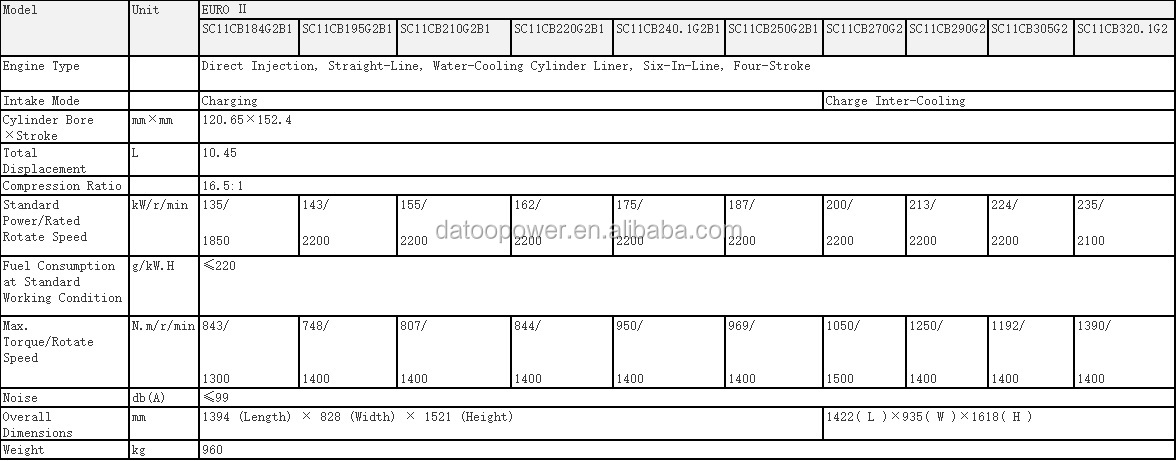

Model
SC11CB220G2B1,C6121ZG50...
Engine Type
Direct Injection, Straight-Line, Water-Cooling Cylinder Liner, Six-In-Line, Four-Stroke
Intake Mode
Charging
Cylinder Bore ×Stroke
120.65×152.4mm
Total Displacement
10.45L
Compression Ratio
16.5:1
Standard Power/Rated Rotate Speed
162kw/2200rpm/min
Fuel Consumption at Standard Working Condition
≤220 g/kW.H
Max. Torque/Rotate Speed
844/1400 N.m/r/min
Noise
≤99 db(A)
Overall Dimensions
1394 (Length) × 828 (Width) × 1521 (Height) mm
Weight
960kg
More type shanghai diesel engine as following:
Supply range: Shangchai (SDEC) :shangchai C6121 D9 D6114 SC8DK SC9DK SC9DF SC11CB220G2B1... Weichai:WD615 WD10 WP6 WP10 WP12... Deutz,Yuchai,Cumins,LOVOL,Sinotruk...and so on. widely use for construction machinery,diesel generator,water pump,truck,stationary power...

SC5D125G2B1
SC11CB305G2
SC8D156.2G2B1
SC8D220G2B1
SC8D190G2B1
SC8D170G2B1
SC8D143G2B1
SC8D175.1G2B1
SC11CB260G2
SC11CB195G2B1
SC11CB220G2B1
SC8D156.2B2B1
SC8D180G2B1
SC8D170G2B1
SC8D190.1G2B1
SC9D210.1G2B1
SC8D170.2G2B1
SC8D190.1G2B1
SC8D190G2B1
SC8D200G2B1
SC9D220G2B1
SC8D180.2B2B1
SC8D185G2B1
SC8D220G2B1
SC8D210G2B1
SC9D210.1G2
SC11CB184G2B1
SC8D190.1G2B1
SC11CB260G2
SC11CB220G2B1
SC9D220G2
SC11CB184G2B1
SC8D190.2G2B1
SC8DK230Q3
SC11CB255G2B1
SC8DK220G3
SC11CB220G2B1
SC8D170G2B1
SC8DK260Q3
SC5D125G2B1
SC11CB220.1G2B1
SC11CB260.1G2
D6121ZG54
SC8DK280Q3
SC8D180G2B1
SC11CB240.1G2B1
SC5D122G2B1
SC8D170G2B1
SC9DK320Q3
SC8D190G2B1
C6121ZG08
SC9DF375Q4
SC11CB305G2
SC11CB210G2B1
SC8D175.1G2B1
SC9DF340Q3
SC8D190.1G2
SC8D190.1G2
SC11CB220G2B1
SC8D190G2B1
SC9DF375Q3
SC8D220.1G2B1
SC8D170G2B1
