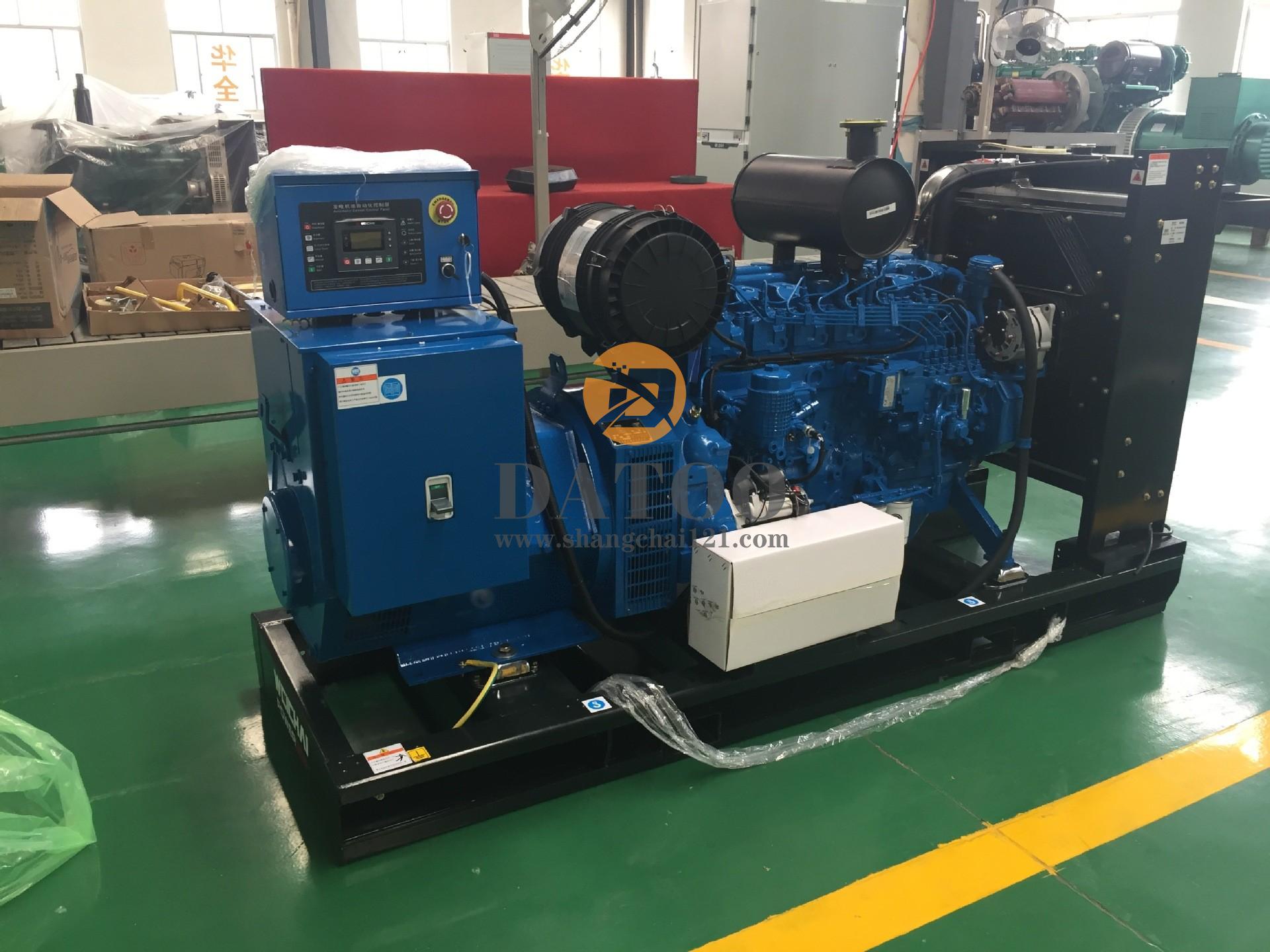

Weichai Diesel Generator

Product Description:

Gensets model	Rated capacity (Kva/kw)	Standby capacity(kva/Kw)	rated current(a)	rated fuel consumption ratio(l/h)	Engine rated power(kw)	Engine cylinder numbers	engine starting method	overall dimensions(mm)	Gross
Gensets model	Rated capacity (Kva/kw)	Standby capacity(kva/Kw)	rated current(a)	rated fuel consumption ratio(l/h)	Engine rated power(kw)	Engine cylinder numbers	engine starting method	overall dimensions(mm)	weight(kg)
WPG13.5B1	12.5/10	13.5/11	18	3	18	4	electric	1500x850x1250	499
WPG16.5B1	15/12	16.5/13.2	22	3.5	18	4	electric	1500x850x1250	503
WPG22B1	20/16	22/17.6	29	4.5	23	4	electric	1500x850x1300	590
WPG27.5B1	25/20	27.5/22	36	6	30	4	electric	1500x850x1300	625
WPG33B1	30/24	33/26.4	43	7	30	4	electric	1500x850x1300	631
WPG41B1	37.5/30	41/33	54	8.5	36	4	electric	1500x850x1300	683
WPG55B9	50/40	55/44	72	10.8	60	4	electric	2050x1080x1665	1161
WPG68.5-9	62.5/50	68.5/55	90	14	60	4	electric	2050x1080x1665	1191
WPG88B9	80/64	88/70.4	115	17.3	90	4	electric	2220x1050x1665	1337
WPG110B9	100/80	110/88	144	21.6	90	4	electric	2220x1050x1665	1372
WPG123.5B9	112.5/90	123.5/99	162	24.1	120	6	electric	2575x1050x1775	1658
WPG137.5B9	125/100	137.5/110	181	26.8	120	6	electric	2575x1050x1775	1663
WPG165B9	150/120	165/132	217	32.2	138	6	electric	2575x1050x1775	1718
WPG206	187.5/150	206/165	271	39.4	182	6	electric	3010x1340x2060	2340
WPG247.5	225/180	247.5/198	324	47.2	216	6	electric	3010x1340x2060	2460
WPG275	250/200	275/220	361	52.5	240	6	electric	3010x1340x2060	2480
WPG344	312.5/250	344/275	451	65.6	290	6	electric	3130x1400x2020	2680
WPG412.5	375/300	412.5/330	541	77.6	350	6	electric	3240x1410x2100	3100
WPG440B8	375/320	440/352	577	82.8	368	6	electric	3240x1410x2100	3125

Genset Features

B and F series product
Original European Technology, Independent R and D.
Gen-sets Power Matching Coefficient.
Matched with Professional High-temperature Radiator.
Professional Application and Integration Capabilities.
Option Automation, Auto-switch, Auto-parallel Connection and other Functions Freely.
Key Components of The Controller, Circuit Breakers, Generators for the Domestic and International Famous
Strong power,high reliability
Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Cummins
