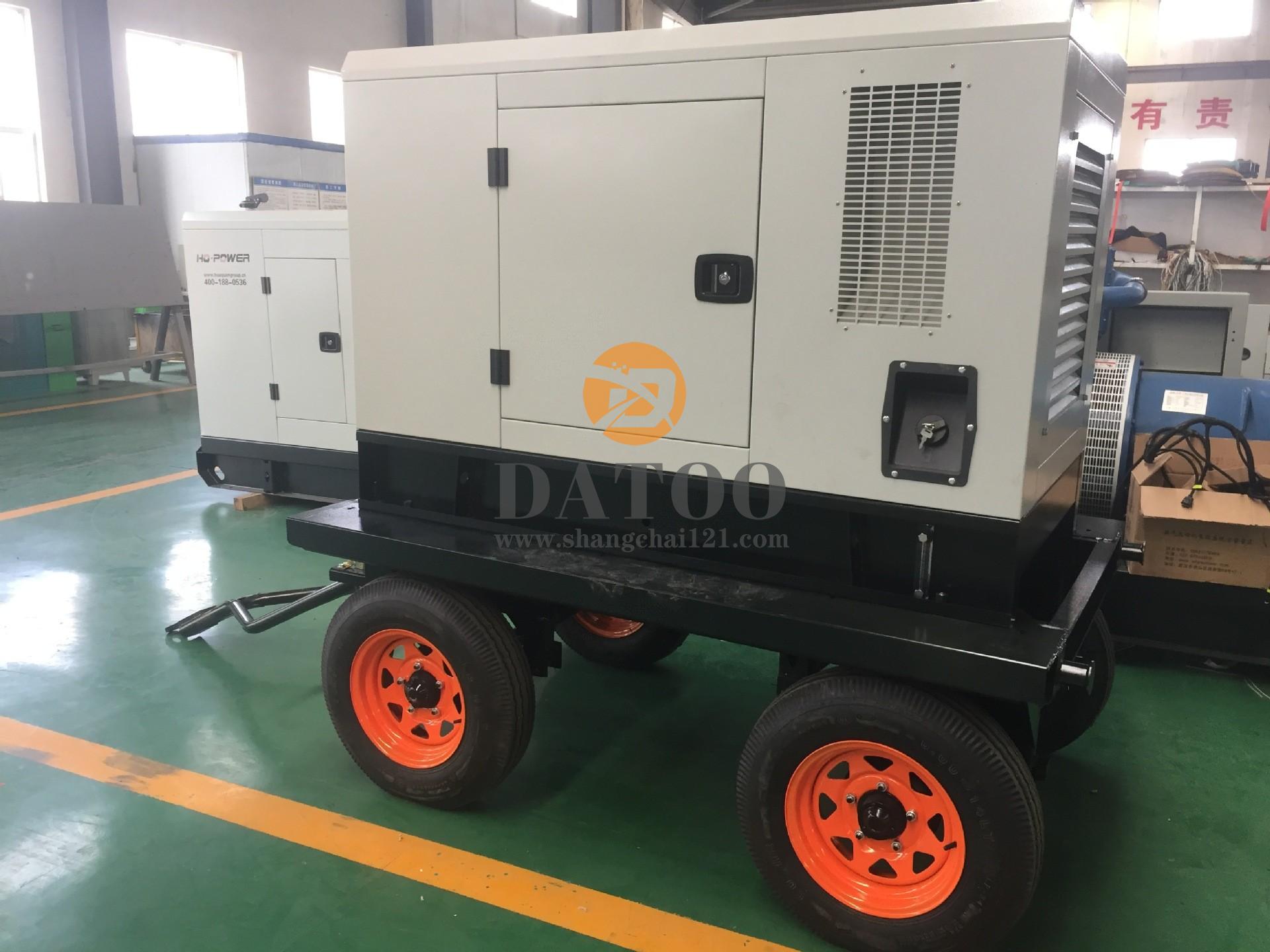

Yuchai Diesel Generator

Product Description:

Genset	Power		Diesel Engine	Cylinders	Displacement (L)	Bore/Stroke	Compression ratio	Fuel consumption	Size	Weight
Genset	(KW)	(KVA)	Diesel Engine	Cylinders	Displacement (L)	(mm)	Compression ratio	(g/kw.h)	L WH (mm)	(kg)
DT-40	40	50	YC4D60-D21	4	4.2	108/115	17.0:1	202	1800×780×1250	800
DT-50	50	62.5	YC4D85Z-D20	4	4.2	108/115	17.5:1	198	1900×780×1250	810
DT-75	75	93.75	YC6B135Z-D20	6	6.9	108/125	17.5:1	200	2300×850×1350	1200
DT-100	100	125	YC6B155L-D21	6	6.871	108/125	17.5:1	198	2400×850×1500	1300
DT-120	120	150	YC6B180L-D20	6	6.9	108/125	17.5：1	198	2400×850×1500	1400
DT-150	150	187.5	YC6A230L-D20	6	7.25	112/132	17.5:1	192	2500×900×1650	1600
DT-150	150	187.5	YC6A245L-D20	6	7.25	108/132	17.5:1	192	2500×900×1650	1600
DT-180	180	225	YC6L275L-D20	6	9.85	120/145	17.5:1	192	2800×1100×1700	2200
DT-200	200	250	YC6M350L-D20	6	9.85	120/145	17.5:1	195	2800×1100×1700	2300
DT-250	250	312.5	YC6M350L-D21	6	10.3	123/145	17.5:1	195	3000×1100×1800	2500
DT-300	300	375	YC6MK420L-D20	6	10.3	123/145	17.5:1	195	3000×1100×1800	2700
DT-300	300	375	YC6MJ480L-D20	6	12.16	123/145	17.5:1	192	3100×1100×1900	3000
DT-350	350	437.5	YC6K500L-D30	6	16.35	145/165	15.0:1	195	3600×1100×1950	3800
DT-350	350	437.5	YC6T550L-D21	6	16.35	145/165	15.0:1	195	3600×1100×1950	3800
DT-400	400	500	YC6T600L-D22	6	16.35	145/165	15.0:1	195	3900×1100×2000	4050
DT-440	440	550	YC6T660L-D20	6	16.35	145/165	15.0:1	195	3950×1100×2000	4200
DT-500	500	625	YC6T700L-D21	6	16.35	145/165	15.0:1	195	4000×1200×2100	5000
DT-500	500	625	YC6TD780L-D20	6	16.35	145/165	15.0:1	195	4000×1200×2100	5000
DT-550	550	687.5	YC6TD840L-D20	6	16.35	145/165	15.0:1	195	4000×1300×2100	5500
DT-600	600	750	YC6C900L-D22	6	39.58	200/210	15.0:1	195	4000×1400×2100	6000
DT-640	640	800	YC6C1020L-D20	6	39.58	200/210	15.0:1	195	4000×1500×2100	7000
DT-700	700	875	YC6C1070L-D20	6	39.58	200/210	15.0:1	195	4000×1500×2100	7100
DT-750	750	937.5	YC6C1220L-D20	6	39.58	200/210	15.0:1	195	4000×1500×2100	7500
DT-880	880	1100	YC6C1320L-D20	6	39.58	200/210	15.0:1	195	4000×1500×2100	8000

More Details Information Please Contact Us
Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Ricardo Lovol Cumminss...and so on

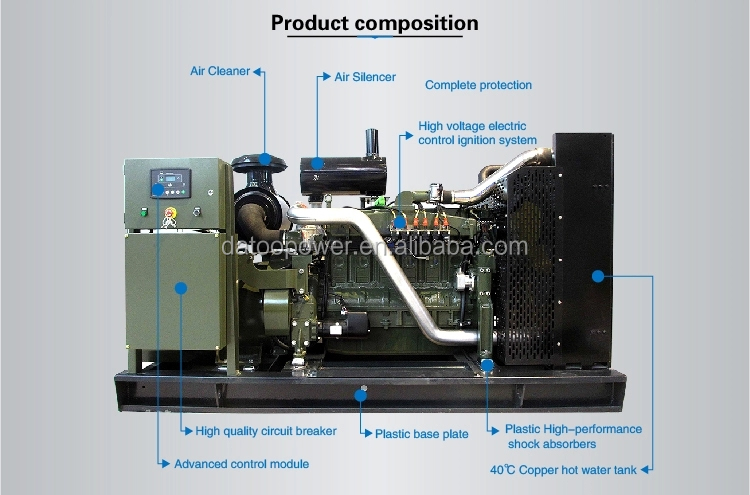

Genset Features

B and F series product
Original European Technology, Independent R and D.
Gen-sets Power Matching Coefficient.
Matched with Professional High-temperature Radiator.
Professional Application and Integration Capabilities.
Option Automation, Auto-switch, Auto-parallel Connection and other Functions Freely.
Key Components of The Controller, Circuit Breakers, Generators for the Domestic and International Famous
Strong power,high reliability
Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Cummins
